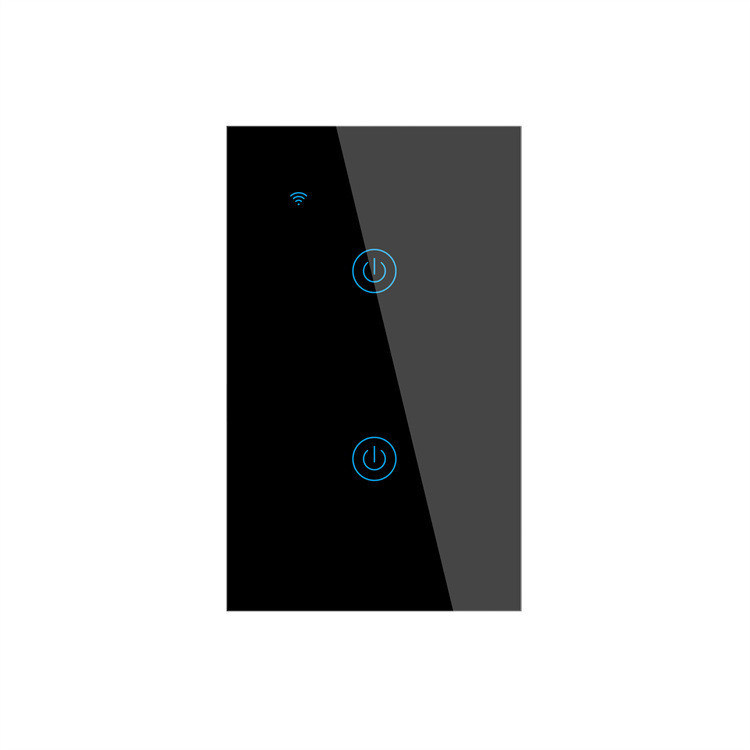

US 1/2/3 Gang Glass Panel Screen Smart Light Switch Smart Home Wall Touch WiFi Switch
| Rated operational voltage | 110V-240V AV | ||
| Operating frequency | 50/60Hz | ||
| Power Supply | Null and live line | ||
| Life time | 1000000 times | ||
| Dimension | Net Weight: 0.2kg | ||
| Size: 86mm*86mm*33mm/120*76*33MM | |||
| Color | White / Black / Gold | ||
| Bottom box material | V0 flame retardant material | ||
| Control | APP remote control / manual touch / remote control | ||
| Product material |
High-grade tempered glass, imported ABS fire retardant injection molding material |
||
✦Color: White / Black/Gold
✦Rated Voltage: 90-260V
✦Load Power: 300W / Gang
✦Rated Current: 10A / Gang
✦AC Frequency: 50-60HZ
✦WiFi Frequency: 2.4GHz 802.11 b/g/n
✦Working Temp.: -10~60℃
✦Working Humidity: <80%
✦Material: PC V0 Flame Retardant + Tempered Glass
Attention:
• Premium Tempered Glass Inductive Touch Panel
• Gentle LED Sensor Light Locator
• Smart Timer with Countdown and Schedule function
• Wifi Controlled with Smart Life App (Available for IOS & Andriod System)
• Remote Control with Smart Life App
• Works with Google Home and Amazon Alexa
Each set comes with:
1 x Switch
2 x Mounting Scre
1 x English Instruction Manual
Note:
• The product can only work with 2.4 GHz band WIFI and does not accept 5GHz band WIFI.
Installation steps, wiring diagram and Smart Life app setting up are available in the instruction manual. Please reach out to us via chat if you have any questions.
• The smart switch does not work with fluorescent light with starter. Please check before buying.
Remote Control: Remote control anytime anywhere via the Tuya APP through a smartphone.
Voice Control: Voice control to turn on or off light switch through a linked smart speaker.
Manual Control: Control the switch manually as any traditional switch.
Timing Function: Set time schedule based on your personal habits, define your personal time.
Scene Setting: A variety of scenes are preset, realize your desired scene and atmosphere.
This is a variation listing with several options to choose from including Switch type, Colour and Gang/Way of the switch.
Gang : Number of switch buttons on the panel, options are 1, 2 , 3 or 4 gang.
Each gang controls a light or set of lights.
Way : Same light can be controlled more than one switch, options are 1 or 2 way.
If you only control the light (or set of lights) from only one switch you require 1 way switch.
However, if you want to control the lights from more than one switches you require to have 2 way switch
All 2 way switches can also be used as an intermediate switch and can be configured to work 3 or 4 way accordingly. (for instance stairs; one switch at the bottom of the stairs and one switch on the top of the stairs control the same light)
Wiring diagram and synchronization instructions will be provided in your pack.
Our products are sold all over the world, you can rest assured.
