Tempered Glass Panel Touch WIFI RF Smart Switch 1 Gang 1 Way with Indicator Light
| Type | WiFi Smart Touch Switch |
|
Pated Current |
10A |
| Voltage | 100-250V 50/60Hz |
|
APP |
Tuya Smart/Smart Life |
| Power Consumption | ≤0.5W |
| Hub Requirement | No |
| Color | White/Black/Gold |
1.App Remote Control: As long as your smart phone or tablet has 4G or WIFI network, you can control your lights by the App "Tuya smart or Smart Life".

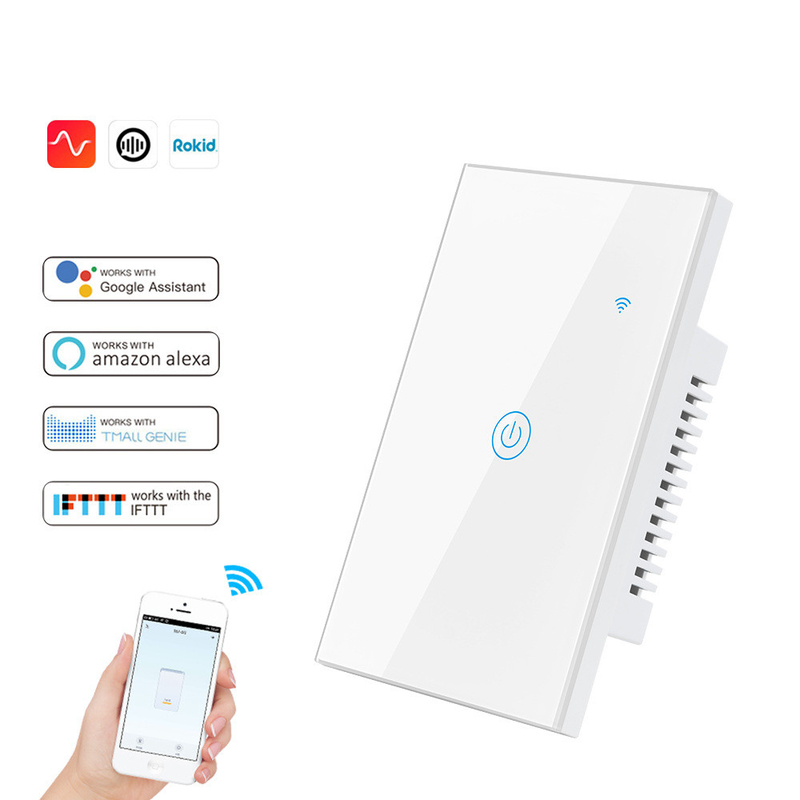

2.Voice control: Perfectly Compatible with Alexa and Work with Google Home. Turn on/off lights with voice commands when your hands are full.
3.Timer Setting: Setting a schedule or timer on/off your lights on night and morning, and then your will never go back to a dark house when you go back home at dusk. Moreover, you could quietly waked up by scheduled light on every morning.
4.Share Function: Sharing devices with your family members to eliminate extra steps for connection.
5.Smart Scene: Creating your own scene to trigger ON/OFF home appliances by departure mode, home mode, temperature, humidity, or other environmental conditions.
6.Safety and Certification: The wall switch adopts premium materials, such as fire-resistant shell, phosphor bronze connects and advanced PC+TEMPERED GLASS, can provide fire prevention, overload protection to protect your family.
7.Our all products certificated by CE, FCC, and RoHS. Without using any harmful chemical substances, please fell relived about usage.
Type: 1/2/3/4 Gang Touch Wi-Fi Switch
Material: PC V0 fireproof + tempered glass panel.
Rated Voltage: AC90V-260V, 50/60Hz.
Load Power:3-300W/gang(Note:If it is used for LED or energy saving bulb,the power load should be less than 100W)
RF Frequency: 433MHz.
Wi-Fi: 2.4GHz, IEEE 802.11 b/g/n
Support by : Android and iOS
APP: Tuya /Smart Life
Attention:
1. Toughened glass panel, strong surface, no deformation, no fading, and exquisite workmanship.
2. ABS fireproof material, fireproof material for shell.
3. Sensitive touch, strong touch, capacitive touch effect.
4. You can touch the switch button with wet hands.
5. Button LED indicator, red: on (bright), blue: off (dark).
6. Realize intelligent control: install mobile APP for remote intelligent control (support android and ios applications: tuya, smart life)
Each set comes with:
1 x Switch
2 x Mounting Scre
1 x English Instruction Manual
Note:
• The product can only work with 2.4 GHz band WIFI and does not accept 5GHz band WIFI.
Installation steps, wiring diagram and Smart Life app setting up are available in the instruction manual. Please reach out to us via chat if you have any questions.
• The smart switch does not work with fluorescent light with starter. Please check before buying.
– Does not require a smart hub to operate as the switch is equipped with a WiFi module.
– Smart Life app / TuyaSmart app is available on both Google Play Store and IOS App Store.
– Works with Google Assistant, Alexa Home for voice control features.
– This smart switch does not require a neutral wire for installation.
This is a variation listing with several options to choose from including Switch type, Colour and Gang/Way of the switch.

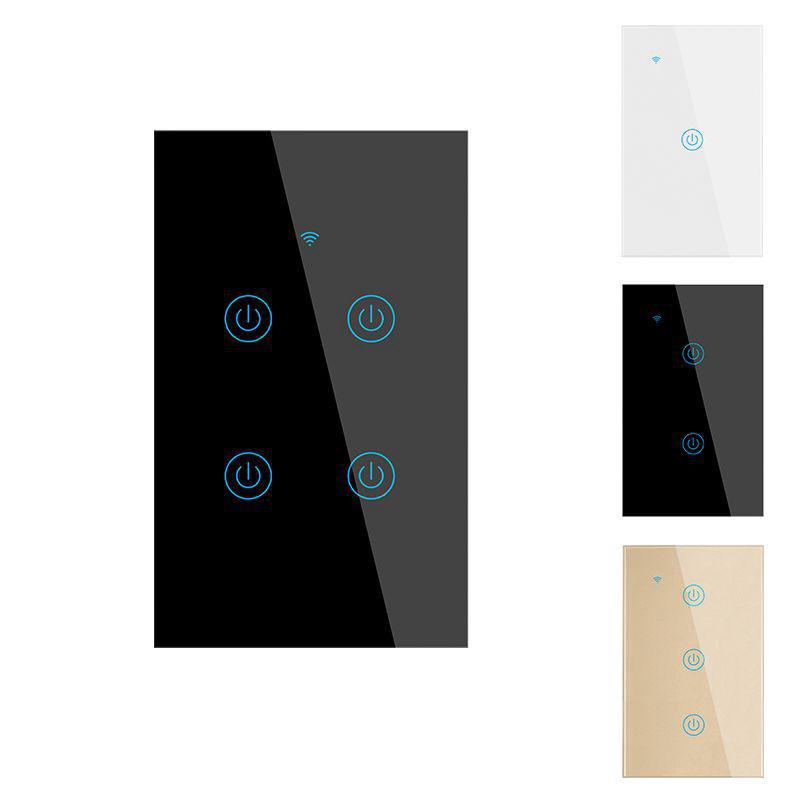

Gang : Number of switch buttons on the panel, options are 1, 2 , 3 or 4 gang.
Each gang controls a light or set of lights.
Way : Same light can be controlled more than one switch, options are 1 or 2 way.
If you only control the light (or set of lights) from only one switch you require 1 way switch.
However, if you want to control the lights from more than one switches you require to have 2 way switch
All 2 way switches can also be used as an intermediate switch and can be configured to work 3 or 4 way accordingly. (for instance stairs; one switch at the bottom of the stairs and one switch on the top of the stairs control the same light)
Wiring diagram and synchronization instructions will be provided in your pack.
Our products are sold all over the world, you can rest assured.
