EU Standard Tuya Zigbee Smart Switch Wall Touch Switch Voice Control Light Switch
|
Technical Parameters: |
|
|
Product Size: |
86mm*86mm |
|

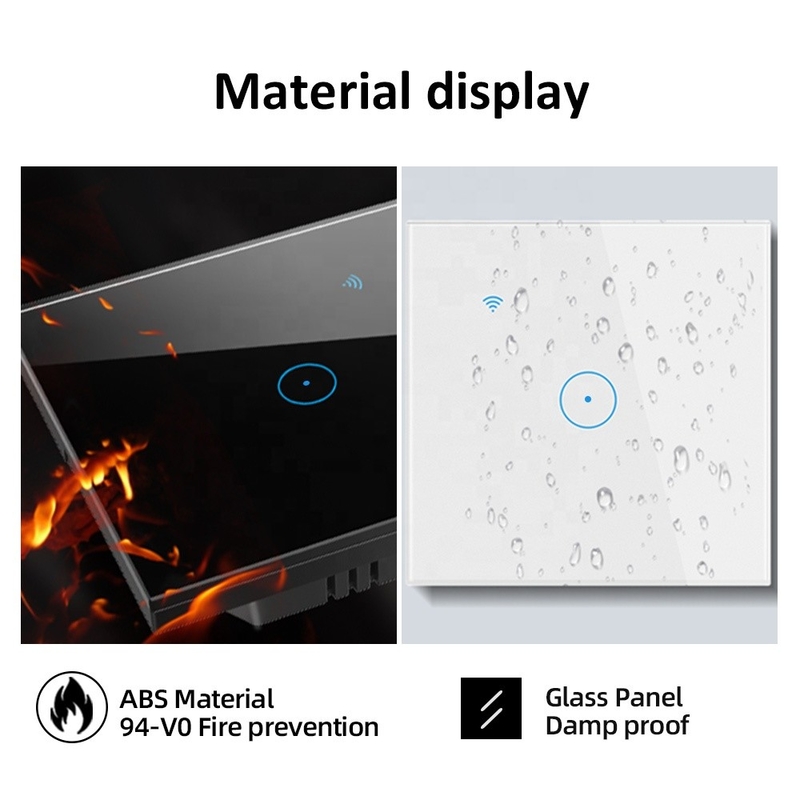

Shell Material |
PC retardant material |
|
Panel Material |
Tempered Glass |
|
Operating Voltage |
AC 110V~240V |
|
Max Current |
16A |
|
Rated Power |
3W-800W/Gang |
|
Energy Consumption |
<0.1mA |
|
Operating Environment |
30~70 Centigrade, less than 95%RH |
|
Longevity |
100,000 times operation/ Five years warranty |
|
Function |
Push Button/Timing/APP/Voice |
|
Voice Control |
Amazon Alexa, Google Home |
|
Wireless Type |
2.4GHz WiFi |
|
Protocol |
IEEE 802.11b/g/n |
|
Wireless Distance |
30m |
WiFi's wireless stability is relatively weak, and high power consumption is also one of its weaknesses. In addition, WiFi's networking capability is relatively low. There is also a certain impact on the user experience.
The biggest feature of ZigBee is high security, low power consumption, and networking, suitable for automatic control and remote control, and can be embedded in various devices.
Smart ZigBee Switch Intelligently control the device after connecting it to most ZigBee hub, Tuya ZigBee hub required for its much more compatibility with zigbee devices than other hubs.
Remotely control your switch wherever you are
Free hands via easy voice control with Alexa and Google Home
Timing setting and countdown options
You can create group in the APP to manage all the lights in your house and share the device to your family members.
Add device to your Smart Life App to get multiple control ways for controlling with your family together.
No more worry about being affected by the noise from the capacitor when sleep with no capacitor required anymore for normal use
Multi-control association of the switch to another ZigBee smart switch in the App for achieving 3 Way feature(two switches control one light).
More personalized settings as ON/OFF/Remember last status when power off.
Size:86 x 86 x 35 mm
Colors:Black, White, Grey, Gloden
Material:Alloy+Crystal Glass
Certification:ce,CCC ,RoHS
Mechanical Life:100000 Times
Working Voltage:110 V-240 V AC
Relative Humidity:10% ~ 93%
Power: 300W
Attention:
Neutral wire is not required
Frequently Asked Questions
1. Does it need a neutral line? How could I know whether there is a neutral line?
No, neutral line is not required.No need to rewiring,Can directly replace existing switches.
2. What is the difference between the single-pole switch and the 3-way switch?
The single-pole switch is designed to turn on/off the light at only 1 place, but could not control the fan speed or light brightness.
The 3-way switch is designed to turn on/off the light at 2 places or more, but could not control the speed and brightness. The 3-way switch also could be used as the single-pole switch.
3.I have a dual wifi router, How could I use it?
The smart switch needs 2.4Ghz Wi-Fi only, not suitable for 5Ghz
If it broadcast only 1 signal, you will need to go to the Wi-Fi management and create a 2.4Ghz Wi-Fi signal first, choose it and enter the password.
If it is broadcasting both signals, the 5G signal will be ignored. You’ll just choose the 2.4Ghz WIFI and enter the password of it.
Note: Electricity must be cut off during installation.
The Switch must be installed without electricity. Only after the glass plate has been covered you can connect the power.Touch for test after 10 seconds.Otherwise the switch will not work properly.
Packaging:
1 x Zigbee touch Switch
2 x Screws
1 x User Manual
