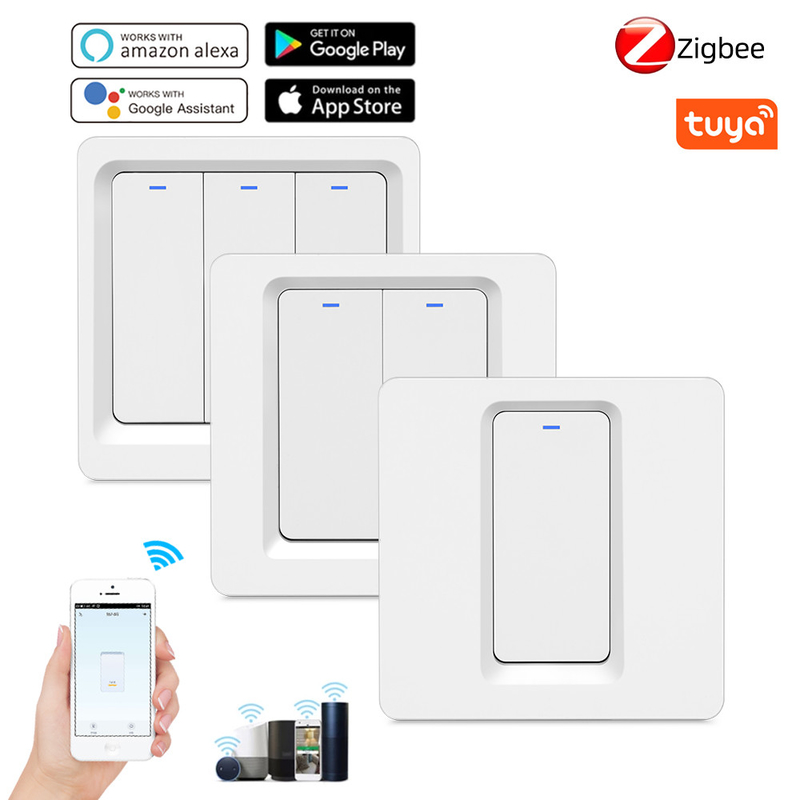

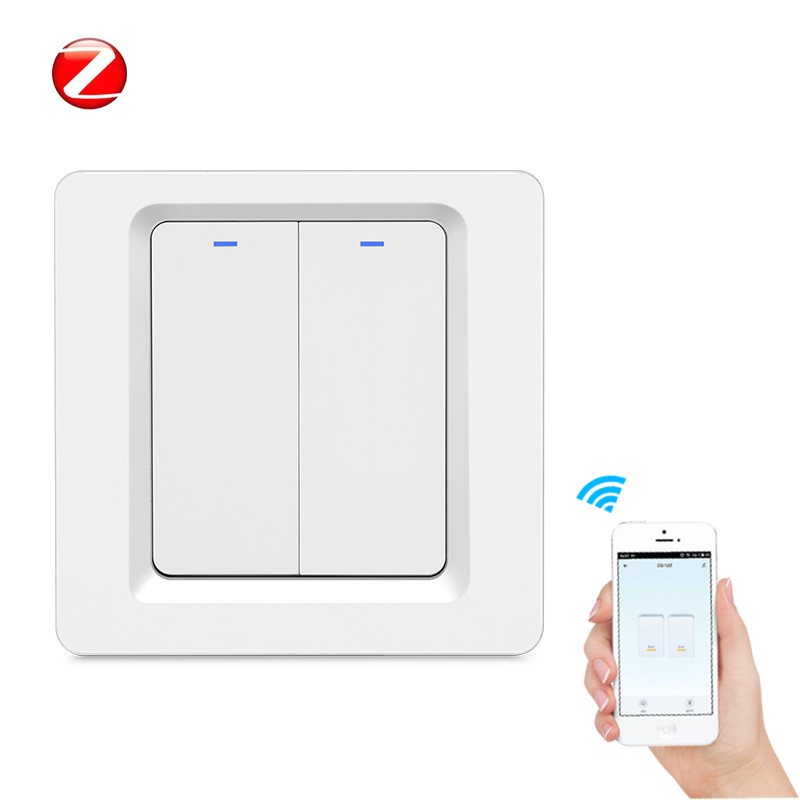

Wireless Scene Switch Zigbee Push Button Switch Tuya Smartthings 1 2 3 4 Gang
Tuya Smart Life APP Push Button Light Zigbee Smart Switch RF 433Mhz Wall Panel
Name |
UK/EU Zigbee1gang 1way Button Switch |
Reted current |
10A |
Power supply mode |
Neutral +live wire |
Input voltage |
110-240VAC 50/60Hz |
Power rating |
600W |
Size |
86*86*42mm |
Housing Color |
White |
Operation Temperature |
-20℃~50℃ |
Plastic material |
ABS+PC |
Fire-protection rating |
94-V0 |
Product Features:
1. Neutral wire required for easier installation for N+Lwire design: No Neutral wire with single live wire design; 2-way multi-control association to control 1 light with multiple switches achieved in Smart Life Tuya App; can control multiple different switches but only 1 gang on 1 switch can be associated.Fire-retardant material and no electric arc new technology to guarantee secure and reliable working. Overloading and overheating supported for your safety and wonderful user experience.1.(Note:Two versions optional:WiFi protocol and ZigBee protocol available,a ZigBee hub is required for normal use of the ZigBee version)
2. A Tuya ZigBee gateway hub is a must : A ZigBee wireless hub is a must for the ZigBee version that connects to the switch in Smart Life App that realizes the whole linkage of your smart home devices in one App.Simply add your gateway to the App,then add the switch to your gateway in the App for normal use.(Note:The ZigBee gateway is not included in the package,you need a separate purchase in our online store)
3.Compatible with Alexa and Google Home for hands-free voice control: Can also be remotely controlled via Smart Life/Tuya app anytime, anywhere; on the basis of one Tuya ZigBee Gateway connected.(Note:The WiFi version works normally without a hub required)
4.Take full control of connected appliances with timers, schedules and countdown (1/5/30 mins, 1 hour, etc.) with the app: share control with family and friends for added convenience.
5.Two versions available and optional: Neutral wire required and no neutral needed in your switch boxes to operate correctly; only supports 2.4 GHz network.
NOTE: Neutral wire optional,can choose neutral wire and live wire switch,or choose only live wire switch.Please confirm what you need is WiFi version or ZigBee version before placing an order.
Input:with neutral 110-240V;no neutral 220-240V 50Hz
Output: with neutral 600W/Gang ;no neutral 10-200W INC/5-150W LED
Rated Current:10A Max
WiFi:2.4G b/g/n
Size:86*86*43mm
Wireless Protocol:ZigBee
Material: fire-retardant PC
Package Listing:
ZigBee/WiFi Push Button Switch*1(Up to your option)
User Manual*1
