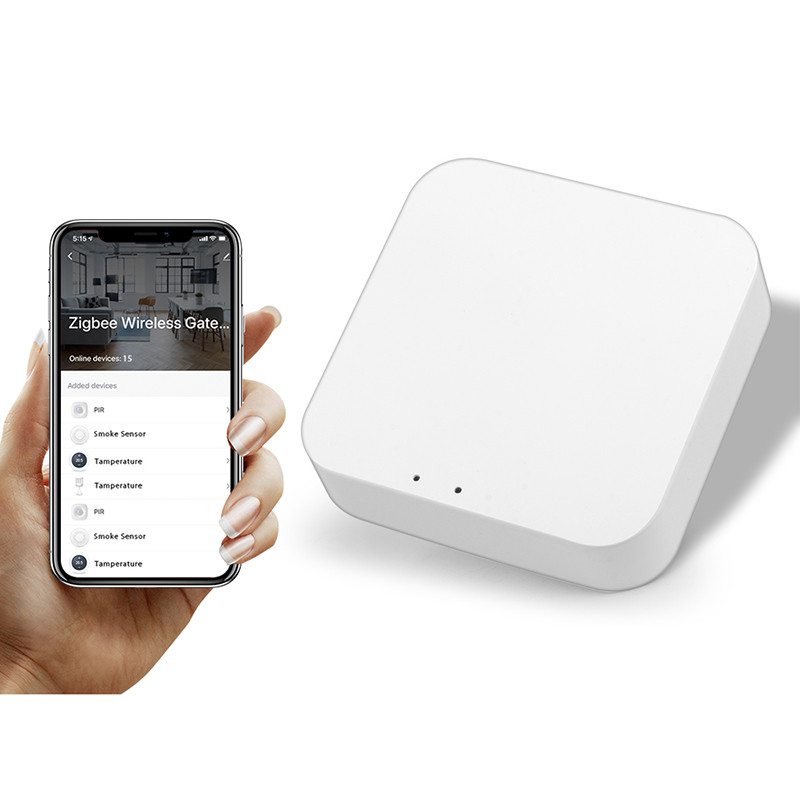

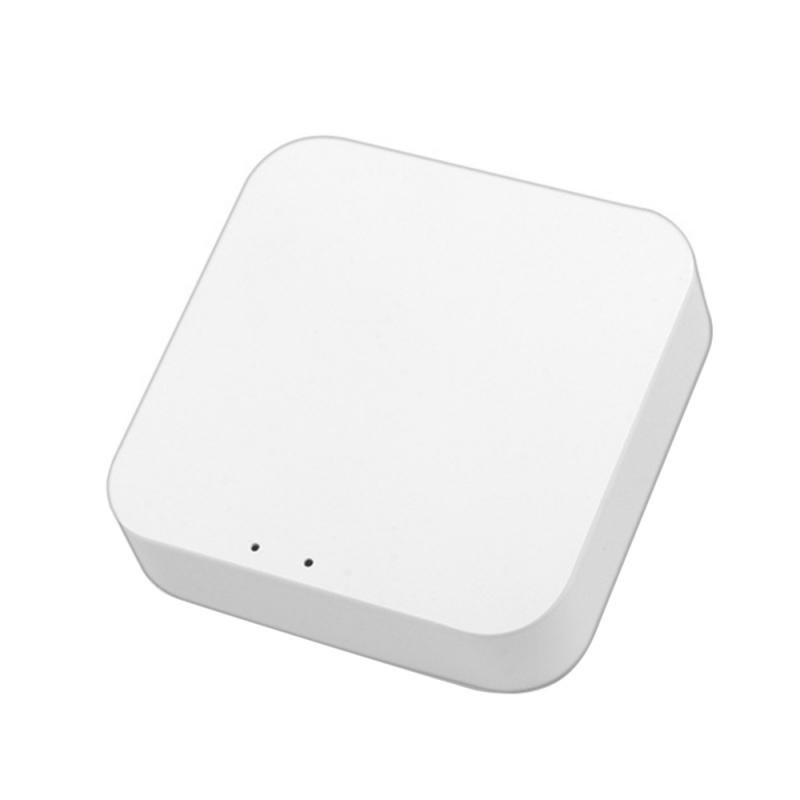

Tuya Zigbee 3.0 Gateway HUB Smart Home Bridge Work With Alexa Google Home
|
Wireless |
ZigBee 3.0 |
|
Input Voltage |
DC 5V 1A |
|
Product Size |
61.5*53.5*15.3 mm |
|
Product Weight |
51.1 |
|
Standby current |
≤1A |
|
Working Current |
≤1A |
|
Alarm Indication |
Message from APP and LED, need to work with Zigbee 3.0 hub |
|
Transmission range |
10~35 meters indoor and more than 70 meters in open air( different testing environments will have different result) |
|
Working temperature |
-10℃ ～+50℃ |
|
Working humidity |
0-95%RH(non-condensing) |
|
Certification |
CE RoHS |
|
Storage temperature |
5-30℃ |
|
Storage humidity |
20%-75%RH(non-condensing) |
|
Battery lifetime |
1 year |
Advantage:
The Tuya smart gateway hub is designed to connect all home appliances and allows users to control them via phone APP.
The smart home bridge features stable signal, which covers a wide range of areas, convenient to control.
The home control hub is easy to set up with the user manual, simple and quick.
The home gateway is compatible with ZigBee 3.0 smart products, convenient and practical.
The smart gateway supports adding devices and device reset, easy to fit different households.
Parameter:
APP:Smart Life Tuya App
Wireless Connection:ZigBee
WiFi Frequency:2.4GHz
Total Number Connected:50 for wireless,300 for wired
Working Temperature:-10°C~55°C
Adapter Output:5V 1A
Working Humidity:10%-90% RH (no condensation)
Package Listing:
Wired Hub
Tuya ZigBee Gateway Hub*1
USB Cable*1
Quick User Guide*1
Network Cable*1
Wireless Hub
Tuya ZigBee Gateway Hub*1
USB Cable*1
Quick User Guide*1
Product function: It is used with ZigBee series products of the graffiti solution, including switches, sockets, sensors, door locks, electric curtains, universal infrared remote controls, etc.
Please note that any ZigBee product needs to be used with a gateway, and our company's model is the lightest mini and easy to install. The currently accessible devices support about 30-50, which is enough for small houses or apartment buildings.
The biggest advantage of the product is that it does not need to be connected to the network cable, it is plug and play, and it can be placed in any place with a socket to be powered on and used for networking.
Wired hub Description:
1.Control sub-devices of the gateway: supporting remote control and group control for ZigBee smart devices in Smart Life App as Single-mode communication for ZigBee3.0 standard protocol based.
2.Scenario and automation supported: Sub-devices of the gateway act as trigger conditions for linking them with other smart devices through the scenario and automation setting in the app,featured as one powerful network bridge for whole house linkage in a real sense for all Tuya Smart home devices.
3.Remote control available: Remotely control the devices that are connected to the gateway through the mobile phone via Tuya Smart App no matter where you are,no need to separately control your Bluetooth and ZigBee devices in two different interfaces,simply control them within one single-mode gateway hub with reliable local linkage and group control services supported.
4.Smart multi-function with easy operation: Locally executing scenario and automation is preferred, which enables smart scenarios and automation to be executed in case of no network access;Add sub-devices without network access and multiple sub-devices accessing the network at the same time.
5.Support security function: Can be integrated into the Tuya Security SaaS platform for added convenience to satisfy various protection requirements with alarm function; Tuya chip built-in enables voice control via Alexa and Google Home for freeing your hands in another sense;
Q&A:
1. Q: Does this hub work with ZigBee 3.0 products?
A: Yes, it can not only work with tuya zigbee products,but also zigbee 3.0 ones.
2. Q: Can this hub control WiFi smart products in the same app?
A: This hub can form a whole house linkage for all the products in your same one app for the hub is connected via the wifi router.
3. Q: Does it work with Alexa echo?
A: Yes, it's compatible with Alexa for voice control,as well as Google Home.
4. Q: What is the ZigBee protocol for this hub?
A: ZigBee and ZigBee 3.0 protocol are both fine.
Our products are sold all over the world, you can rest assured.
