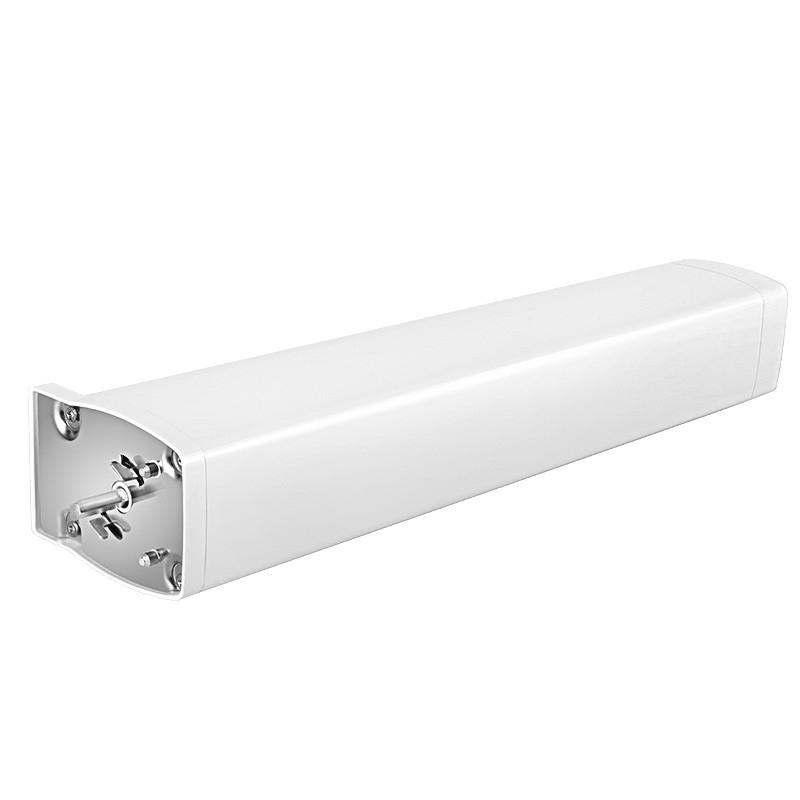

Smart Home Electric Curtain Motor for Hotel Home Automation System

Product name	Smart Home Hotel Curtain Motor
Model	GM82TY
Internet	WiFi
App	Tuya / smart life app
Voice	Alexa google home voice
Usage	Smart curtain drive /open
Feature	0.6NW curtain motor (1-4m ) 1.2NW curtain motor (1-6m) 1.5NW curtain motor( 1-20m) Voltage 85-265 V Watt 12w 50/60HZ Bearing weight 50KG
Curtain type	Open and closing curtain/ S wave fold curtain /single layer curtain /double layer curtain
Window type	Straight window /L window/curved window /U shape window
Application	Luxury Smart Home Hotel Electric Curtain Project



Tuya WIFI Curtain Motor

Rated Current: 0.31A

Rated Torque: 2.0Nm

Rated Voltage: 100-240VAC

Rated Frequency: 50/60Hz

Rotational Velocity: 105rpm

Line speed: 0.14m/s

Noise Figure: <35dB

Insulation Grade: l.cl.E

IP Level: IP41

Loading capacity: 55kg

Touch start

Manual operation
Soft start soft stop
Automatic limit setting
Stopped meet resistance
RF433 remote control
Dry contact
WiFi connection
Voice control
Schedule setting

Material: PC & ABS

Voltage: AC 110V 60Hz

Power: 40W

Rotate Speed: 110rpm

Speed: 10cm/s

Rated Torque: 1.2 Nm

Rated Current: 0.3A

Insulation Class: E Class

Protection Level: IP20



Smart Curtain Feature

Electronic memory limit function

Automatically clear motor travel and error,make sure motor tracl accurate

Start work by slight pull

Pull the curtain clightly by hand, the curtain will move automatically

Stop work when meet resistance

Curtain will stop moving when meet resistence to protect motor

Slow start, slow stop

Curtain travel elegantly

Manual operation when power off

You can pull curtain by hand when no power

Intermediate limit function

After setting, curtain can stop at any point according your needs

Silence design

Noise less than 33db

Tuya app remote control,RF433 remote control via Dooya remote controller

Voice control via google home/alexa

【APP Remote Control】Cool and fantastic tech design that makes your life so much easier with a simple clicking on your smart phone after connecting with Tuya gateway Hub, which makes your home smarter.
【Voice control】Compatible with Amazon Alexa and for Google Home, you can turn on or off the curtain just by voice.
【Timing Function】You can set scheduled/countdown timers in the APP to turn on/off your electronic curtain. 7:00 open the curtain, let the sun slowly wake you up in the morning. 22:00 close the curtain, sleep mode for quite comfort.
【Sync Status】Real-time light status showed on App. Also support manual ON/OFF and RF 433HMz remote control ON/OFF. (The remote controller not included)
【Share control】Control your smart home together with your family.
