Intelligent Smart AC Motor Automatic Window Opener Adjustable Travelling Distance
Product Description
|
Product Name |
chain window opener |
|
Input |
24V |
|
Load Capacity |
600N |
|
Speed |
5mm/s(Option) |
|
Standard Sroke |
100-1500mm (Option) |
|
Min. Install Dimension |
S+100mm |
|
Operation Temperature |
-5°C~40°C |
|
Protection Class |
IP54 |
|
Color |
Black Shell And Silver Outer Tube |
|
Option |
MULIN’s Transformers And Hand Controllers |
Chain-type electric window opener is used for electric sliding windows and electric sliding windows, and is especially suitable for places where the height of the window is not convenient for human operation. With various automatic control systems, manual opening/closing can be realized. Automatic smoke sensor on/off, automatic temperature sensor on/off, etc.
Features
● Wide input range, AC100-240V

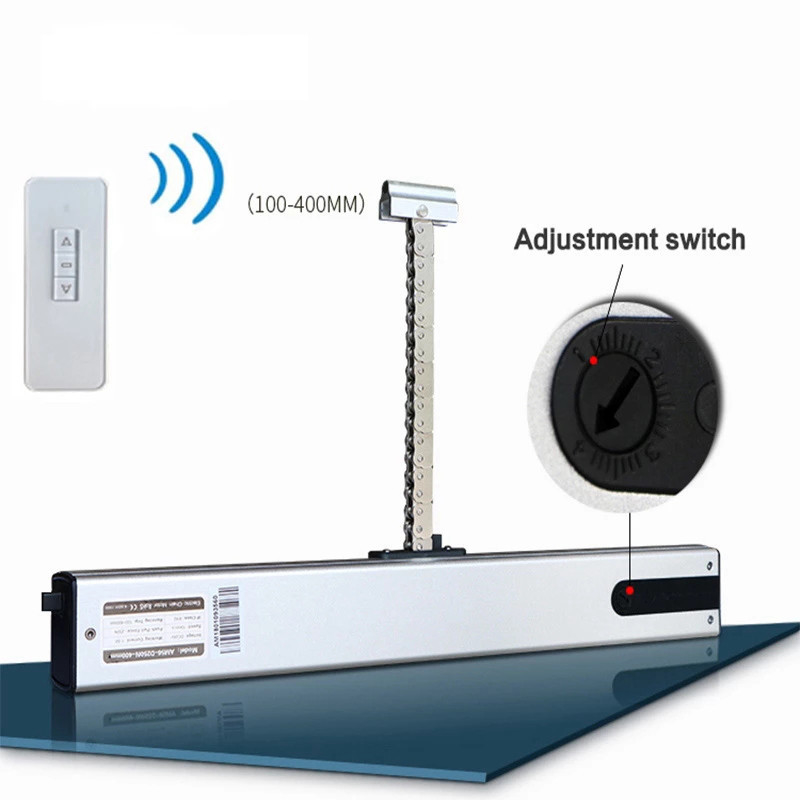

● Adjustable knob switch to choose different strokes, the maximum stroke can reach 400mm;
● The chain adopts double-layer stainless steel metal sheet, which runs stably and smoothly;
● The shell is made of sandblasted aluminum profiles, and the left and right end caps and mounting brackets are zinc alloy precision die-casting parts.
● Suitable for installing windows as small as 470mm in width
● The internal structure is fixed by two fire-resistant ABS, and the guide rail is made of POM material, which achieves a higher safety factor and mute effect;
● Life can reach 10,000 opening and closing actions
Tuya Smart App Built-in Autoamtic Window Opener Features
*Built-in Tuya app program, which can be connected with Alexa, Google home and Siri;
* Adjustable and memorable opening and closing distance, Max. opening distance can be customized;
* Tuya smart(smart life) app can control a variety of IR and RF household electrical appliances, such as air conditioners, TVs, set-top boxes, fans, doors, gates and other household appliances;
* Extra rain sensor and wireless wall switch can be worked with window opener;
* The power supply is plug design, DC24 working voltage, no wiring, convenient and safe;
* Suitable for a variety of window types, top-hung windows, hopper window, awning windows, side-hung windows, skylights, etc.
Here the opener is with 300mm stretch length. For opener with 400/500/600/700mm stretch length , contact seller or search in our store. For AC version motor, you can also search in our store or contact seller.
Kit1: 2 wire DC24V motor only, Suitable to use with DC24V power supply. Motor itself doesn't support Wifi control.
Kit2: 2 wire DC24V motor + AC100-240V to DC24V smart wifi switch (support control by wifi Tuya remotely, no hub needed), support connect to wired or wirelessrain/wind sensor in our store.
Kit3: 2 wire DC24V motor + AC100-240V to DC24V smart wifi switch (support control by wifi Tuya remotely, no hub needed)+1pcs 433Mhz remote control, support connect to wired or wirelessrain/wind sensor in our store.
Kit4: 2 wire DC24V motor + AC100-240V to DC24V Normal switch (support 433Mhz control),support connect to wired or wirelessrain/wind sensor in our store.
Kit5:2 wire DC24V motor + AC100-240V to DC24V Normal switch (support 433Mhz control) + 1pcs 433Mhz remote control,support connect to wired or wirelessrain/wind sensor in our store.
Kit6: Gray 2 wire DC24V motor + AC100-240V to DC24V smart wifi switch (support control by wifi Tuya remotely, no hub needed)+1pcs 433Mhz remote control, support connect to wired or wirelessrain/wind sensor in our store.
1. The chain stretches out while open window and retract to opener inside after closing window. Doesn't all to open/close manually no matter power on or power off. Will stop when encouter a strong obstacle.
2. Double layer chain, more durable and not easy to break off.
3. Equipped with overload protector and can open and close for 20000times.
4. Locking force reach 2000N. Push/Pull force 400/400N.
5. Working temperature: 20-75oC
6. Suit for multiple window types
7. Working speed 9mm/s
How to install
For AC100-240V motor, please click image below to order
For AC100-240V motor with adjustable travel length, please click iamge below
For switch that support control 2 pcs motor individually, please click image below to order
For weather sensor or wireless rain sensor, please click image below to order
For window chain with different chain length 30/40/50/60/70cm
Our products are sold all over the world, you can rest assured.
