Intelligent Remote Control Electric Chain Window Opener Motor Smart Home Use
Electric Skylight Remote Control Window Opener Motor Driver Pusher Villa Automation
Product Description
Technical Parameters
|
Model |
Stroke(mm) |
Work voltage |
Max.current |
Push/pull force(N) |
Protection class |
Size(mm) |
|
GM300/24 |
300 |
DC24V |
1A |
400 |
IP32 |
41*51*420 |
|
GM400/24 |
400 |
DC24V |
1A |
400 |
IP32 |
41*51*490 |
|
GM500/24 |
500 |
DC24V |
1A |
400 |
IP32 |
41*51*540 |
|
GM600/24 |
600 |
DC24V |
1A |
400 |
IP32 |
41*51*590 |

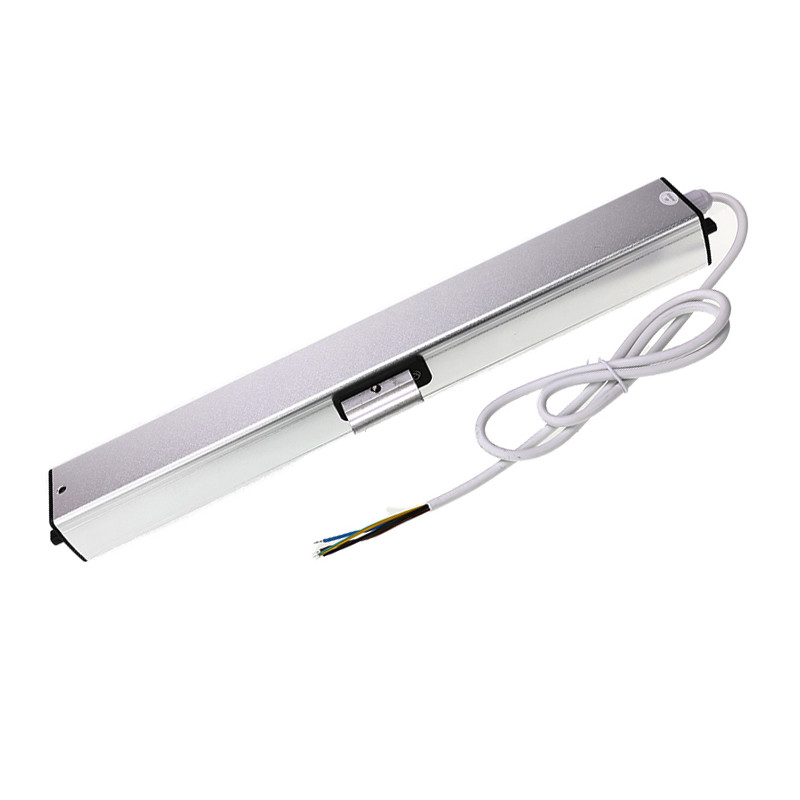

Electric chain window actuator opener motor
Double chain drive structure, stable running, hidden installation. Especially suitable for various top-hinged window, bottom-hinged window, center-pivoted window, sloping roof window &smoke ventilation skylights.
About the window opener
This device is compact, outlook designs very modern;
Ø There is one side no exposed screws, meet to visible surface no screws required;
Ø Full Metal Aluminum Case;

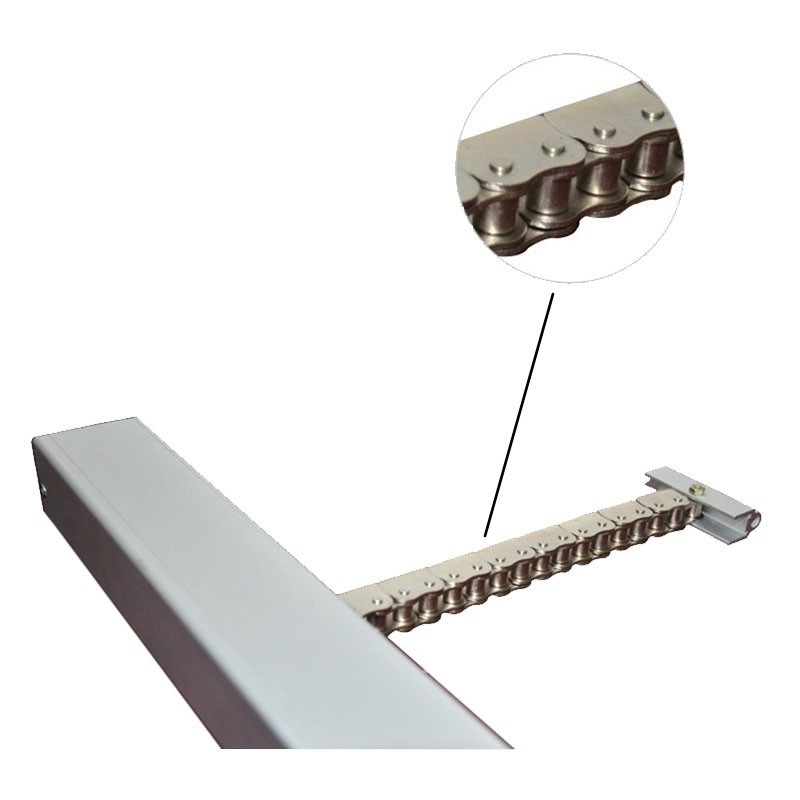

Ø Double chain, not easy to break;
Ø Swivel bracket;
Ø Open and close 30,000 times continuously even after normal use;
Ø Working temperature: -20 ºC ~ 75 ºC;
Ø Suitable for a variety of window type;
Ø Switch controller panel can be remote control window opener matching pairs upstream, downstream, dimming control and other functions.
Safety and maintenance instruction
Ø Motor designs life: 30,000 times open and close ;
Ø Products in a year, the human damage failure of normal use one pair of a free replacement, except consumables ;
Ø Do not overload electrical outlets or extension cords, fire or electric shocks can be the result.
Ø Please contact an expert in case you have any doubts about the mode of operation, the safety or connecting the appliances.
Ø Keep all parts away from young children's reach.
Ø Do not store this item on wet, very cold or warm places, this can damage the electronic circuit boards.
Ø Avoid dropping or shocks, this can damage the electronic boards.
Maintenance
The devices are maintenance-free, so never open them. The guarantee becomes void when you open the appliance. Only clean the outside of the devices with a soft, dry cloth or a brush. Prior to cleaning, remove the devices from all voltage sources.
NOTE!
Do not use any carboxylic cleaning agents or petrol, alcohol or similar. These will attack the surface of devices. Besides, the vapors are hazardous to your health and explosive. Do not use any sharp edged tools, screw drivers, metal brushes or similar for cleaning.
Tuya Smart App Built-in Autoamtic Window Opener Features
1. Wide voltage AC100 ~ 240V input, suitable for national voltage standards
2. Different strokes can be selected by adjusting the knob switch, the maximum stroke can reach 400mm
3. Suitable for windows with a width as small as 470mm
4.Life can reach 10,000 opening and closing actions
5. The chain adopts double-layer stainless steel metal sheet, which runs stably and smoothly.
6. The shell is made of sandblasted aluminum profile, and the left and right end caps and the mounting bracket are made of zinc alloy precision die castings.
7. The internal structure is fixed by two fire-rated ABS seats, and the guide rail is made of POM material to achieve a higher safety factor and silent effect
8. Simple installation and disassembly, more humane design
Our products are sold all over the world, you can rest assured.
