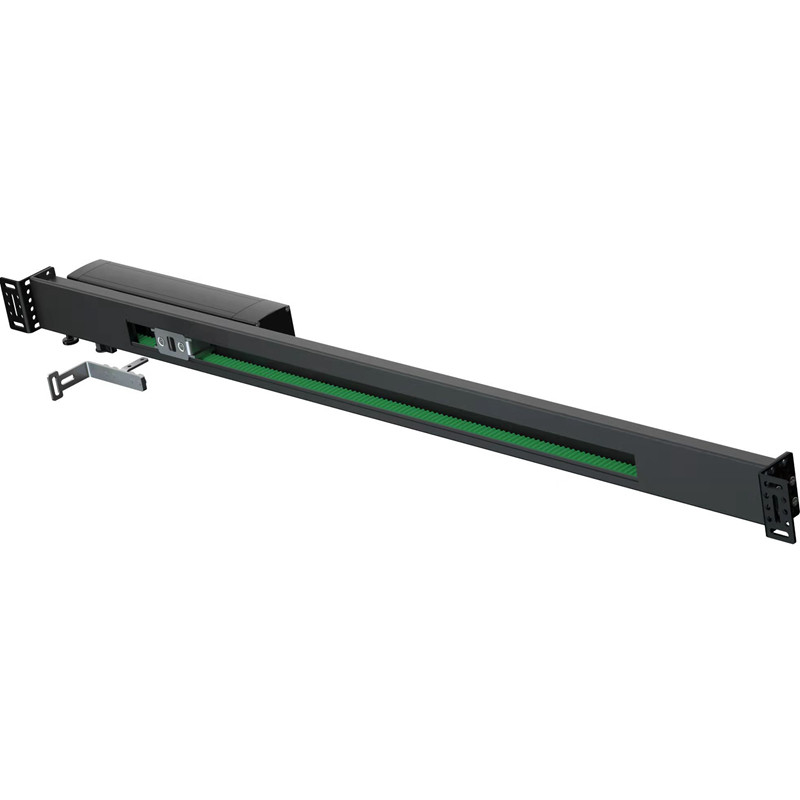

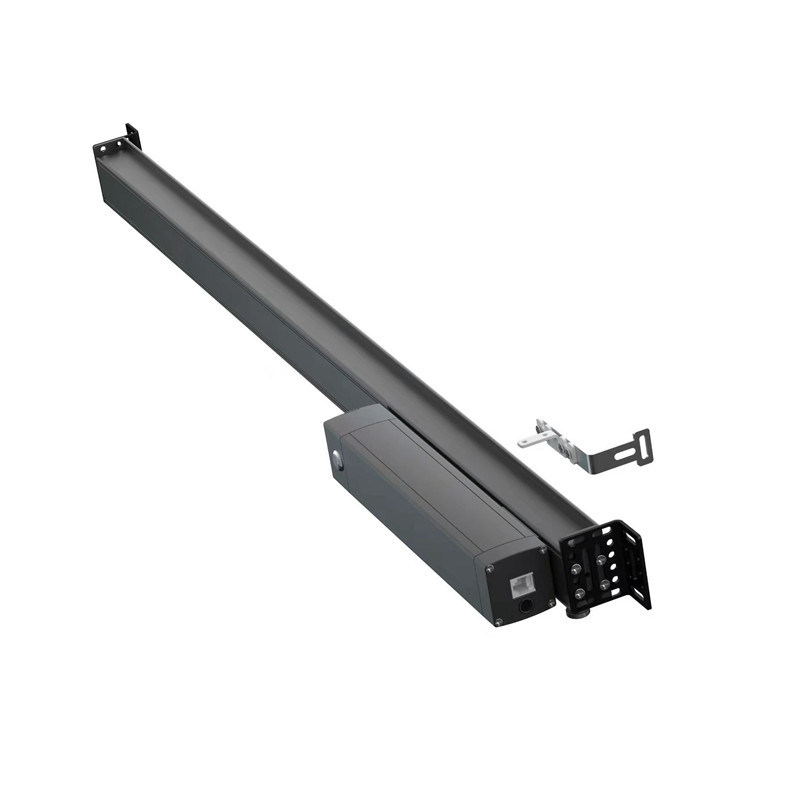

Built in Motor Chain Window Opener Travelling Distance Adjustable
Product Description
|
Product Name |
Sliding Electric Window Opener |
||
|
Input |
AC90V-240V/50HZz60Hz |
||
|
Rated Power |
30W |
||
|
Power board output voltage |
DC 22.8V-25.2V |
||
|
The output ripple of the power board is less than |
<250mV-VPP |
||
|
Power board output current |
1A |
||
|
Locked-rotor current |
1.8A |
||
|
Standby power consumption |
0.9W |
||
|
No-load power consumption |
3W |
||
|
Overload protection current |
2.3A-2.6A |
||
|
Motor speed |
38rp/m |
||
|
Maximum linear speed |
5.7cm/s |
||
|
Maximum pulling force |
80N.cm |
||
|
Static locking tension |
>2000N |
||
|
Running noise |
<50dB |
||
|
Wireless receiving sensitivity |
-110dBm(The open remote control distance is greater than 30 meters) |
||
|
Protection level |
IP41 |
||
|
Insulation class |
E class(The thermal protection time is greater than 4min) |
||
|
Wireless remote control frequency |
ASK433.92MHz |
||
Note
1. For kit include remote control. Battery is not included.
Kit1: 300mm Motor only, support Tuya smart/Smart life/Alexa/Google home
Kit2: Kit1+1pcs remote controler.support Tuya smart/Smart life/Alexa/Google home/remote control
Kit3: 400mm Motor only, support Tuya smart/Smart life/Alexa/Google home
Kit4: Kit3+1pcs remote controler.support Tuya smart/Smart life/Alexa/Google home/remote control.
For opener with different chain lenght, like 500/600/700mm, contact seller, we will offer you price.
Please give your window size, we will customize the suitable window track for you (This price is suitable for 1.5m track)
Q: Can you accept customized?
A: Yes, we will offer complete solutions according customer request. And dimension, and custom-made complete set door for project.
Q.Can I have a sample order?
A: We can't provide free samples, you have to pay freight.
Q.Can you make OEM or ODM service?
A: Yes. We can accept OEM service. Also we have our own designer team. So it's also welcome to choose our ODM products.
Q.What’s your minimum order quantity?
A: MOQ is 1 sets.
Q. How to control the product’s quality?
A: We have always placed great emphasis on quality control to ensure that excellent quality level is maintained. Moreover, the
principle we always maintain is "to provide customers with better quality, better price and better service".
Q: How can I check the quality of the finished products?
A: We can send a sample to you so you can check the quality of the product.
Sample Policy :
You need to pay for sample first if you want to check the quality, the money will be refunded when mass order comfirmed.
Our products are sold all over the world, you can rest assured.
