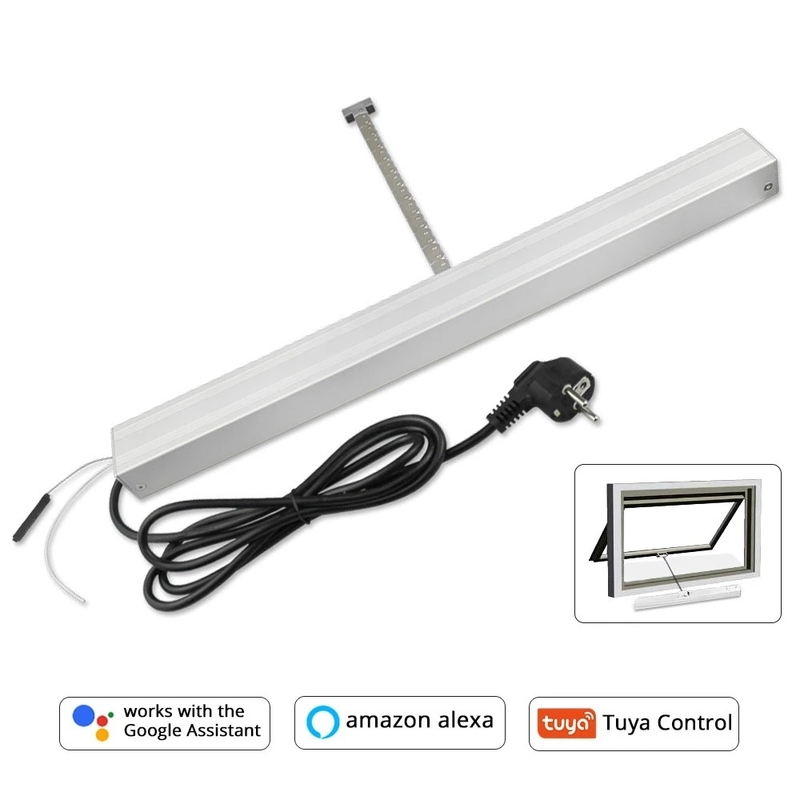

Built in Motor Chain Window Opener Travelling Distance Adjustable
Product Description
|
Rated Voltage |
AC90-240V, 50/60Hz |
Static Locking Tension |
>2000N |
|
Rated Power |
35W |
Stroke Trip |
300mm/500mm |
|
IP Class |
IP32 |
Working Temperature |
-5~80℃ |
|
Max. Speed |
12 mm/s |
MAX.Drag Force |
500 N |
Tuya smart chain automatic window opener is a powerful window opener.
The window opener has a built-in Tuya smart app program. After downloading the Tuya smart(Smart Life) app on your phone, following the instructions to connect to the machine.
You could be able tocontrol the windows by your phone
This window opener also supports connecting Amazon Alexa and Google Echo, Siri of Apple mobile phone. These are the smart features of the device.
From the experience, many customers reported that their windows are closed too tightly, which may damage the windows.
The new tuya smart window opener solves this problem. The opening and closing distance of the window can be set easily in the Tuya app.
If you want to fully open or close, half open or half closed, and any other percentage can be adjusted, the maximum of the window opening stroke can be customized.
Commonly used are 300mm, 400mm, 500mm.
Tuya smart window opener also has a stroke memory function.
When the opening and closing strokes are set for the first time, the program will be automatically memorized, and you can reset it according to your needs later.
Item parameters
1. The chain can bend unidirectionally. It stretches out while open window and retract to opener inside after closing windo. Don't support close/open by pushing/puling directly.
2. Double layer chain, more durable and not easy to break off.
3. Equipped with overload protector and can open and close for 30000times.
4. Smart design with strong funciton.
5. Locking force reach 2000N. Push/Pull force 400/400N.
6. Working temperature: -20-75oC
7. Suit for multiple window types
8. Working speed 12-15mm/s
9. The travel length here is 300mm. For 400/500/600/700mm, please contact us.
10: Working current: 1.2A, Power 28W
11. IP grade: IP 32
Here the opener is with 300mm stretch length. For opener with 400/500/600/700mm stretch length , contact seller or search in our store. For AC version motor, you can also search in our store or contact seller.

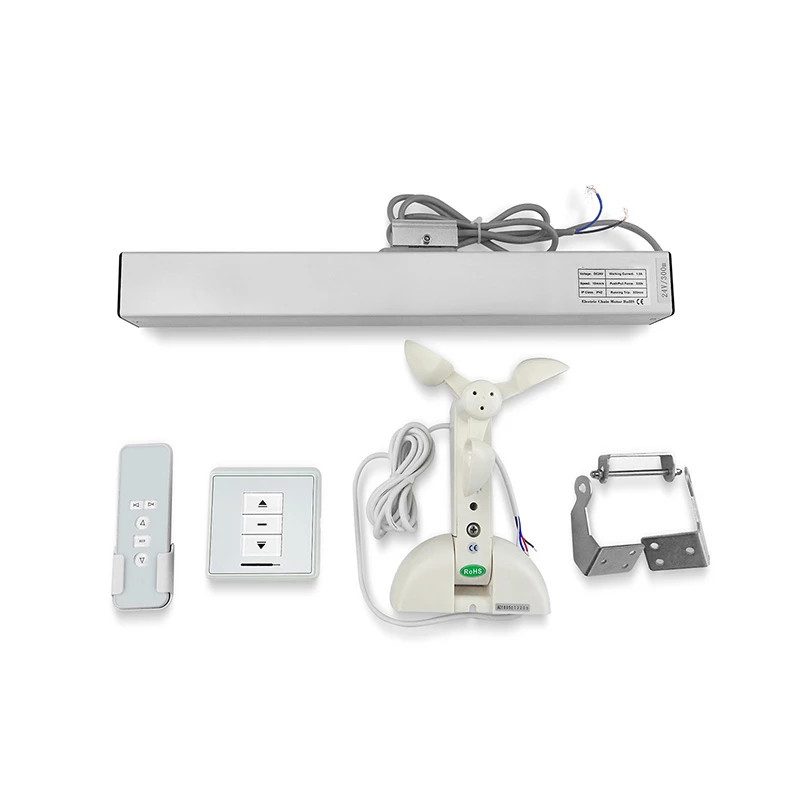

Kit1: 2 wire DC24V motor only, Suitable to use with DC24V power supply. Motor itself doesn't support Wifi control.
Kit2: 2 wire DC24V motor + AC100-240V to DC24V smart wifi switch (support control by wifi Tuya remotely, no hub needed), support connect to wired or wirelessrain/wind sensor in our store.
Kit3: 2 wire DC24V motor + AC100-240V to DC24V smart wifi switch (support control by wifi Tuya remotely, no hub needed)+1pcs 433Mhz remote control, support connect to wired or wirelessrain/wind sensor in our store.
Kit4: 2 wire DC24V motor + AC100-240V to DC24V Normal switch (support 433Mhz control),support connect to wired or wirelessrain/wind sensor in our store.
Kit5:2 wire DC24V motor + AC100-240V to DC24V Normal switch (support 433Mhz control) + 1pcs 433Mhz remote control,support connect to wired or wirelessrain/wind sensor in our store.
Kit6: Gray 2 wire DC24V motor + AC100-240V to DC24V smart wifi switch (support control by wifi Tuya remotely, no hub needed)+1pcs 433Mhz remote control, support connect to wired or wirelessrain/wind sensor in our store.
1. The chain stretches out while open window and retract to opener inside after closing window. Doesn't all to open/close manually no matter power on or power off. Will stop when encouter a strong obstacle.
2. Double layer chain, more durable and not easy to break off.
3. Equipped with overload protector and can open and close for 20000times.
4. Locking force reach 2000N. Push/Pull force 400/400N.
5. Working temperature: 20-75oC
6. Suit for multiple window types
7. Working speed 9mm/s
How to install
For AC100-240V motor, please click image below to order
For AC100-240V motor with adjustable travel length, please click iamge below
For switch that support control 2 pcs motor individually, please click image below to order
For weather sensor or wireless rain sensor, please click image below to order
For window chain with different chain length 30/40/50/60/70cm
